What Is a Digital E6B Flight Computer?
A digital E6B flight computer is an aviation calculator that converts the classic circular slide-rule and wind-side functions of a mechanical E6B into fast, repeatable, screen-based calculations. The traditional E6B has two big jobs. First, it works as a circular slide rule for time, speed, distance, fuel, conversions, density altitude, and true airspeed estimates. Second, it works as a wind triangle computer for wind correction angle, true heading, and ground speed. This page brings those ideas into a single online tool that can be used by student pilots, aviation instructors, flight-simulation users, engineering learners, and anyone studying applied trigonometry in a real-world navigation context.
The most important concept behind the E6B is that aircraft motion is vector motion. The airplane moves through the air at a true airspeed and heading. The air mass itself moves over the ground as wind. The result is the aircraft’s actual ground track and ground speed. When wind comes from one side, the pilot must “crab” into the wind by flying a heading that is different from the desired course. When wind blows from ahead, ground speed decreases. When wind blows from behind, ground speed increases. The E6B helps convert those relationships into practical flight-planning numbers.
Core Wind Triangle Formula

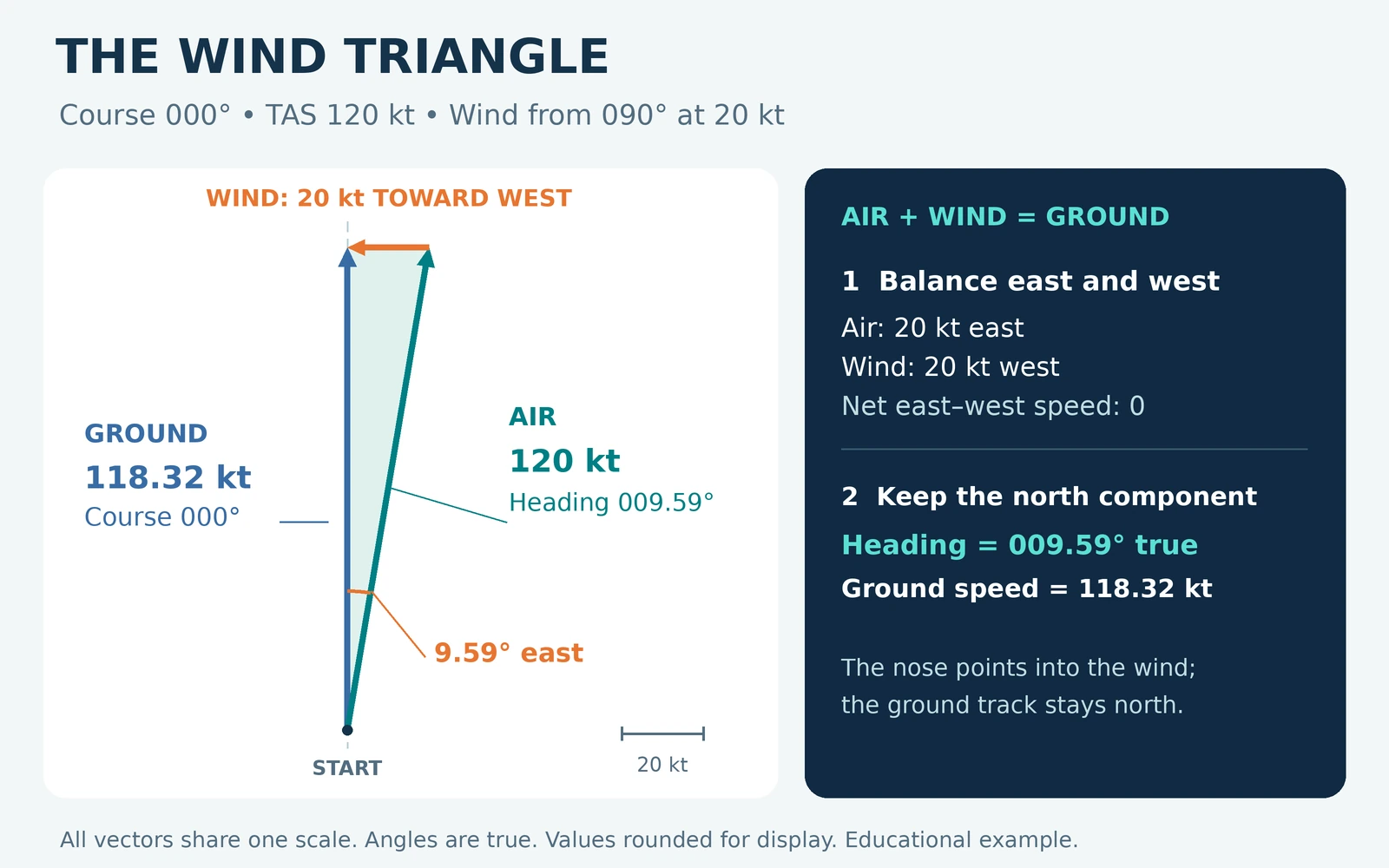

In simplified training form, the wind correction angle is calculated using: \( WCA=\sin^{-1}\left(\frac{V_w\sin(WD-TC)}{TAS}\right) \). Here, \(V_w\) is wind speed, \(WD\) is wind-from direction, \(TC\) is true course, and \(TAS\) is true airspeed. Once the wind correction angle is known, true heading is: \( TH=TC+WCA \). Ground speed is estimated with: \( GS=TAS\cos(WCA)-V_w\cos(WD-TC) \).
The sign of the wind correction angle matters. If the wind is from the right, the aircraft generally needs a heading correction to the right. If the wind is from the left, the aircraft generally needs a heading correction to the left. This is why two aircraft flying the same course at the same speed can have different headings when the wind changes. A digital E6B makes this relationship easier to study because every input can be adjusted instantly.
Time, Speed, and Distance
The E6B’s time-speed-distance function is based on the relationship: \( Distance=Speed\times Time \). In aviation, speed is often measured in knots, which means nautical miles per hour. If a flight leg is 120 nautical miles and the aircraft’s ground speed is 120 knots, the estimated time en route is one hour. If the same leg is flown with a headwind and ground speed falls to 100 knots, the estimated time becomes 1.2 hours, or 1 hour and 12 minutes. This is why ground speed, not true airspeed alone, matters for fuel planning and arrival estimates.
Fuel Planning

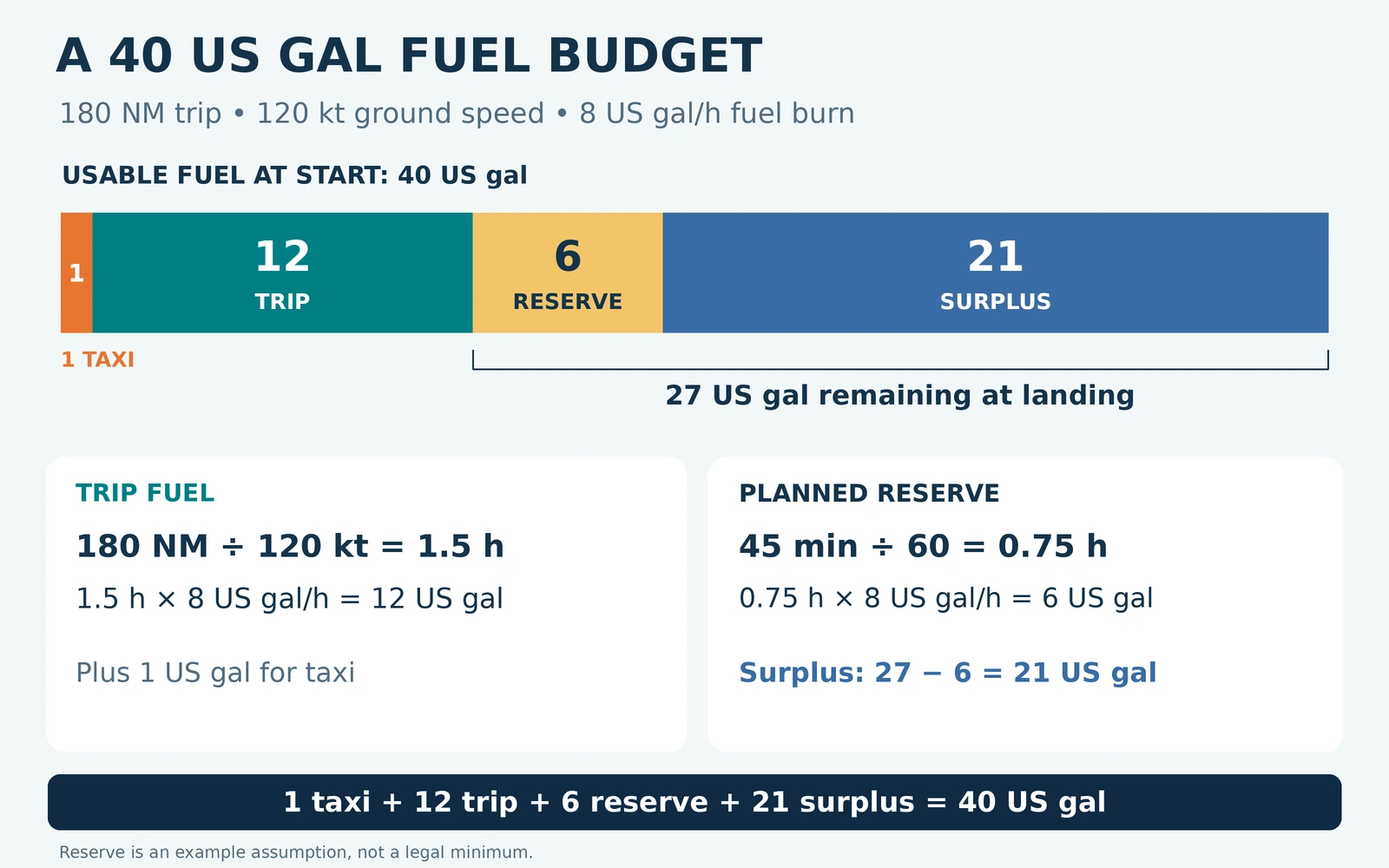

Fuel calculations connect directly to time calculations. The basic formula is: \( Fuel=BurnRate\times Time \). If an aircraft burns 9 gallons per hour and the flight time is 2 hours, the planned enroute fuel burn is 18 gallons. A responsible fuel plan then adds taxi fuel, climb allowance if needed, reserve fuel, alternate fuel where applicable, and any operational margin required by the flight context. This calculator gives an educational estimate, but the aircraft POH/AFM and applicable operating rules must be used for real-world decisions.
Pressure Altitude and Density Altitude
Pressure altitude is a pressure-based reference altitude. A common training approximation is: \( PA=FieldElevation+(29.92-AltimeterSetting)\times1000 \). Density altitude adjusts pressure altitude for nonstandard temperature: \( DA\approx PA+120(OAT-ISA) \), where \(ISA=15-1.98(PA/1000)\). High density altitude reduces aircraft performance because the air is less dense. That can increase takeoff distance, reduce climb rate, and affect engine and propeller performance. This is one of the most important aviation uses of an E6B-style calculator.
Crosswind and Headwind Component
Runway wind components help pilots evaluate takeoff and landing conditions. The headwind component is: \( Headwind=V_w\cos(WD-RWY) \). The crosswind component is: \( Crosswind=V_w\sin(WD-RWY) \). A positive headwind component means wind is opposing the aircraft’s runway direction. A negative value means tailwind. The crosswind result shows how much of the wind is acting from the side. Pilots compare these values with aircraft limitations, demonstrated crosswind values, runway condition, training level, and operational judgment.
Climb, Descent, and Top of Descent
For climb or descent planning, vertical speed and ground speed create a path gradient. The tool calculates: \( ft/NM=\frac{FPM}{GS/60} \). The percentage gradient is: \( Gradient(\%)=\frac{ft/NM}{6076.12}\times100 \). A 3-degree descent path is often approximated near 318 feet per nautical mile. If an aircraft must lose 3,000 feet, a 3-degree descent requires roughly 9.4 nautical miles, not including configuration changes, speed changes, ATC restrictions, or level-off requirements.
How to Use This Digital E6B
- Start with the wind module if you are planning a navigation leg. Enter true course, true airspeed, wind direction, and wind speed.
- Read the wind correction angle, true heading, magnetic heading, compass heading, and ground speed.
- Move to the fuel module. Use the ground speed from the wind calculation, then enter route distance and fuel burn.
- Check pressure altitude and density altitude when performance matters, especially on hot days or at higher elevation airports.
- Use runway wind before takeoff or landing practice to calculate headwind, tailwind, and crosswind components.
- Use the off-course tool when studying pilotage and dead-reckoning correction methods.
- Use unit conversion for nautical miles, statute miles, kilometers, knots, miles per hour, liters, gallons, pounds, kilograms, Celsius, and Fahrenheit.
Mini Course: E6B Skills for Student Pilots
| Lesson | Skill | Practice Goal |
|---|---|---|
| 1 | Time-speed-distance | Solve missing time, speed, or distance quickly and convert hours to minutes. |
| 2 | Fuel burn | Calculate trip fuel, reserve fuel, endurance, and remaining fuel. |
| 3 | Wind correction | Understand why true course and true heading differ. |
| 4 | Ground speed | Connect headwind and tailwind to estimated time en route. |
| 5 | Crosswind | Resolve wind into runway-aligned components. |
| 6 | Density altitude | Recognize how heat and pressure affect aircraft performance. |
| 7 | True airspeed estimate | See why TAS generally increases relative to IAS at altitude. |
| 8 | Climb/descent gradient | Convert FPM and knots into feet per nautical mile and percent gradient. |
| 9 | Off-course correction | Use drift angle and closing angle to return to course. |
| 10 | Exam readiness | Repeat problems until the formula logic is clear without guessing. |
FAA Exam and Scoring Context
This page is not an official FAA training course and does not replace a certified instructor, ground school, POH/AFM, or official FAA/PSI testing material. However, E6B calculations are directly relevant to common student-pilot study areas such as navigation, fuel planning, weather correction, aircraft performance, and flight planning. The FAA Private Pilot Airplane knowledge test is commonly identified by the code PAR. Official FAA testing documents should always be checked before booking because test matrices, ACS references, authorization rules, and testing supplements can be updated.
There is no fixed “next exam timetable” for an E6B calculator. FAA airman knowledge tests are generally scheduled by appointment through authorized testing systems. For content accuracy, link readers to official FAA Airman Testing, FAA ACS, and FAA PSI resources rather than publishing a single exam date. A good SEO page should state this clearly so the user does not confuse a calculator page with a testing authority.
Recommended Self-Check Accuracy Table
The following table is an educational self-check rubric, not an official FAA score table. Use it to evaluate your own E6B practice sessions.
| Practice Accuracy | Meaning | Recommended Action |
|---|---|---|
| 90–100% | Strong calculation control | Practice mixed route-planning scenarios and explain each step aloud. |
| 80–89% | Good but not automatic | Review sign conventions for wind correction and crosswind. |
| 70–79% | Basic understanding | Repeat time-speed-distance, fuel, and wind triangle problems daily. |
| Below 70% | Needs structured review | Return to formulas, use slower worked examples, and ask an instructor for feedback. |
Frequently Asked Questions
Is this Digital E6B Flight Computer safe for real flight navigation?
No. It is an educational planning and study tool. Real flight decisions require current official data, aircraft manuals, approved instruments, regulations, weather briefings, and pilot judgment.
What is wind correction angle?
Wind correction angle is the angle added to or subtracted from true course so the aircraft maintains the desired ground track despite wind drift.
Why is ground speed different from true airspeed?
True airspeed is aircraft speed through the air mass. Ground speed is aircraft speed across the earth. Wind changes ground speed by adding a headwind, tailwind, or crosswind component.
What is density altitude?
Density altitude is pressure altitude corrected for nonstandard temperature. High density altitude usually reduces aircraft performance.
Does the E6B have an official FAA score table?
No. The E6B is a calculation tool. FAA knowledge tests have official test matrices and passing scores, but the E6B itself does not have a separate official scoring table.
